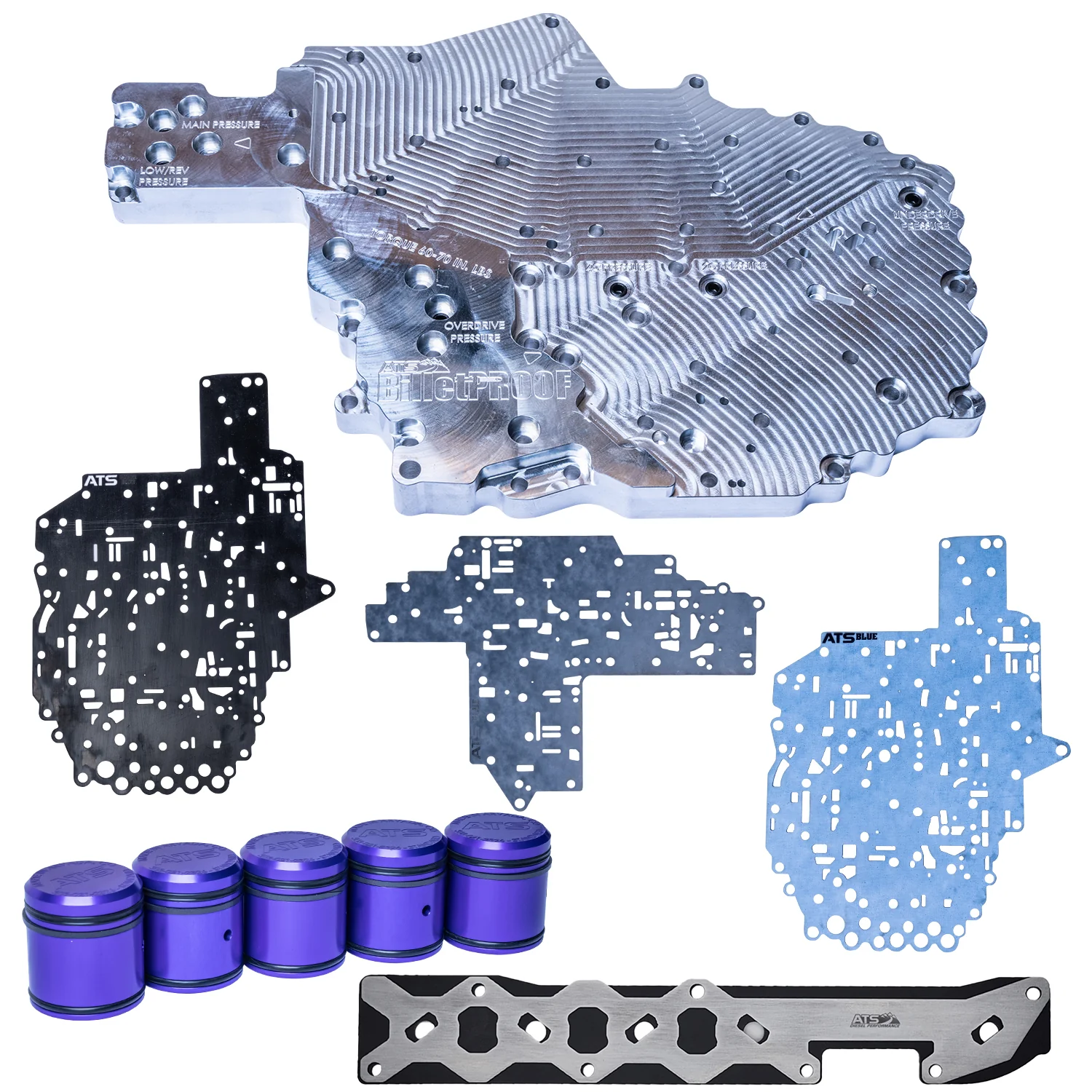

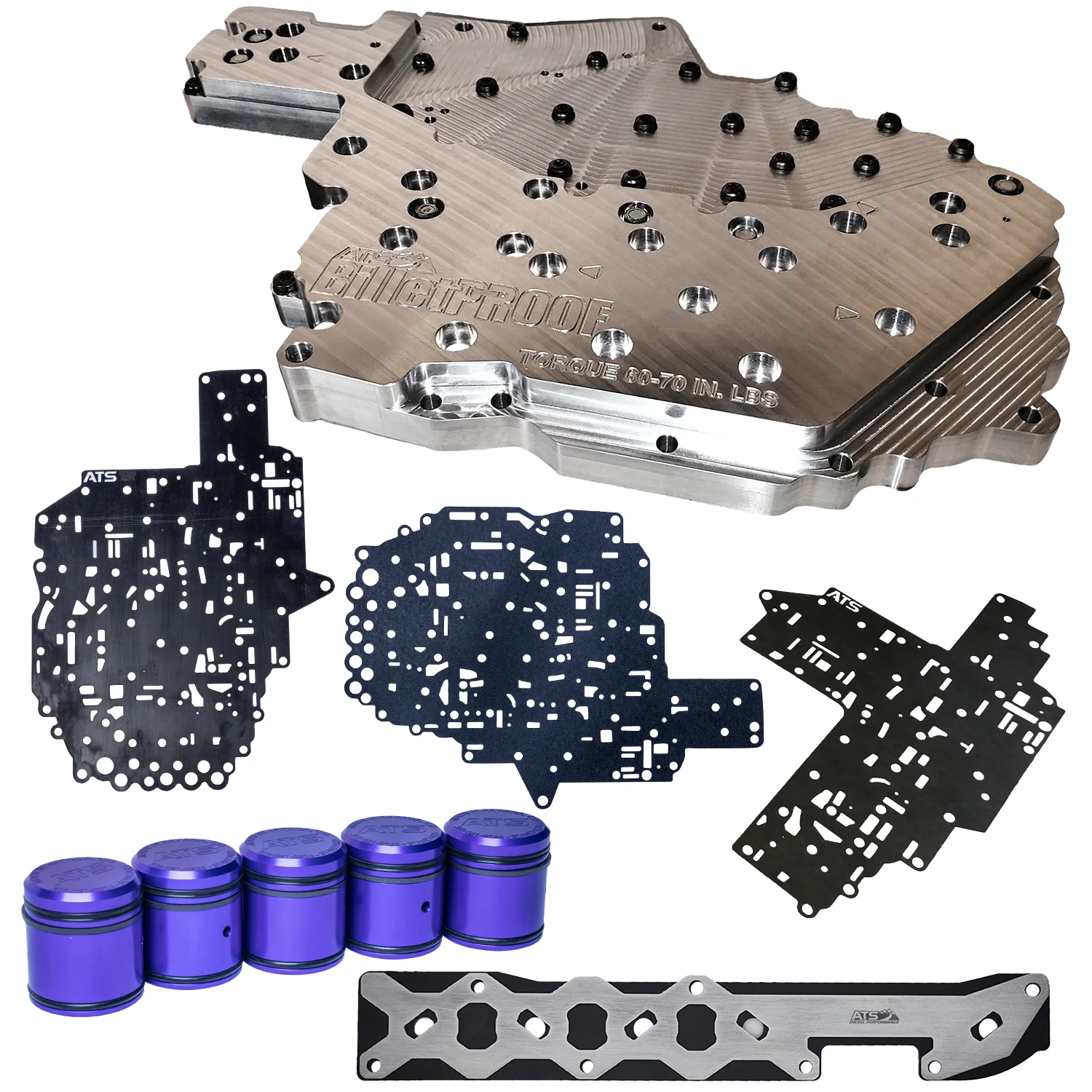

ATS 68RFE Billet Channel Plate Billet Accumulators Separator Plate Gaskets Accumulator Plate Kit Fits 2007.5-2019+ 6.7L Cummins
1 / 5
ATS 68RFE Billet Channel Plate Billet Accumulators Separator Plate Gaskets Accumulator Plate Kit Fits 2007.5-2019+ 6.7L Cummins
ATS 68RFE BilletPROOF Billet Channel Plate (plate only)
Fitment: 2007½-2018 Dodge RAM 6.7L Cummins

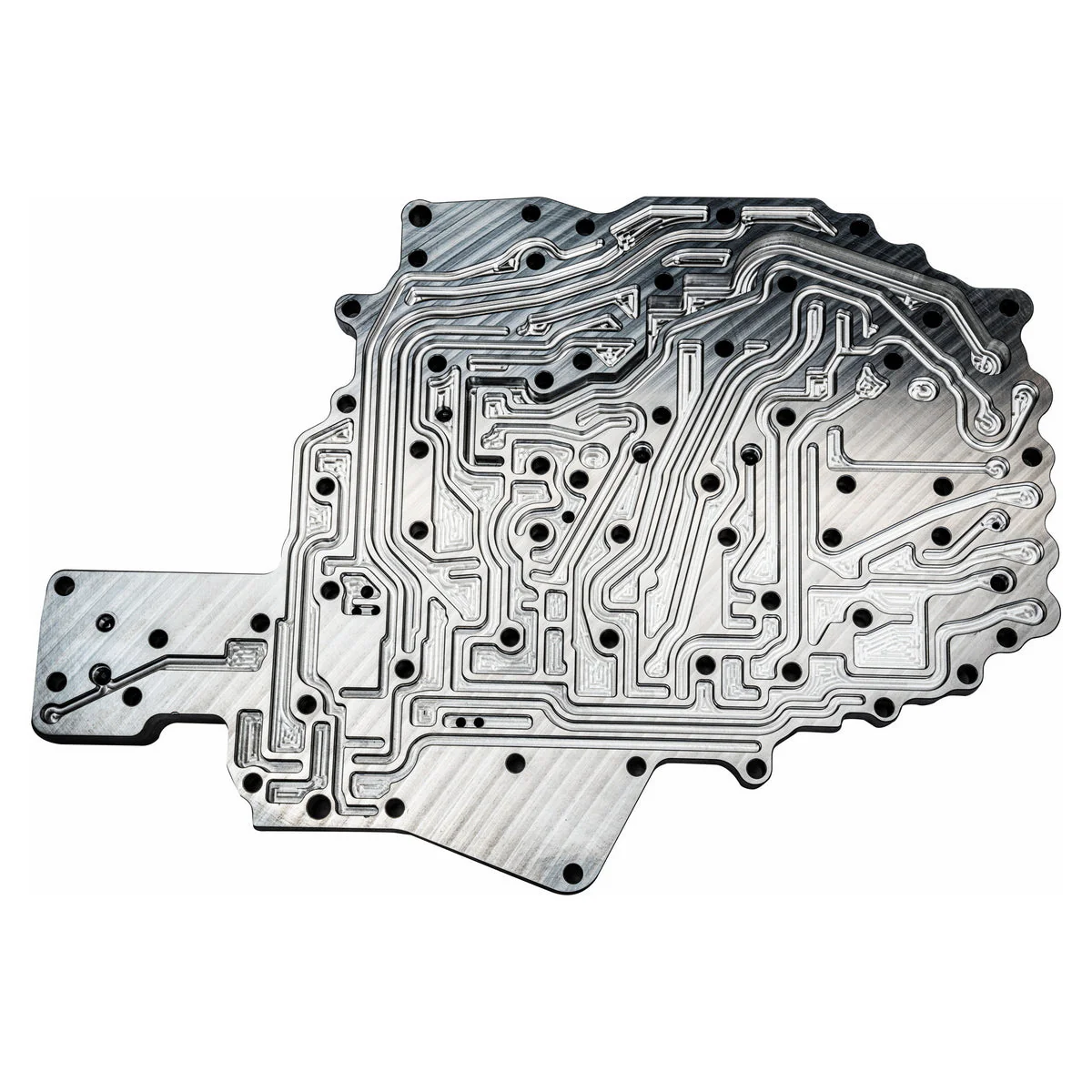

Heat in the 68RFE transmission causes the stock thin cast channel plate to warp, causing cross leaks and poor shift performance. To combat this common issue, ATS designed a BilletProof Channel Plate: A stress relieved 1" thick aluminum tooling plate precisely CNC machined to include all valve body channels, vent holes, and even includes pressure testing ports with engraved labels. Critical channels have been enlarged to allow additional fluid to feed the clutch packs ensuring a quick fill time. ATS's BilletProof Channel plate for the 68-RFE works with both stock transmission pan's, as well as aftermarket deep pans.
This BilletProof Channel Plate can be installed in any 68RFE transmission. A crisp, smooth, strong shift quality will be immediately noticed after installation of the BilletProof Channel Plate and all of the problems that are associated with cross leaks will be eliminated. We also recommend you install the ATS laser cut separator plate and gaskets when installing the BilletProof Channel Plate.
Features:
- 68RFE Valve Body Channel Plate 2007.5-2018 Dodge RAM 6.7L Cummins
- Material: Aluminum
- Liter: 6.7 Liter
- Transmission Model: 68RFE
- Engine Manufacturer: Cummins
- Fits: 2007.5-2018 Dodge Ram
Select Plate Option
Select Year
From $669.99
ATS 68RFE Billet Channel Plate Billet Accumulators Separator Plate Gaskets Accumulator Plate Kit Fits 2007.5-2019+ 6.7L Cummins—
$669.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ATS 68RFE BilletPROOF Billet Channel Plate (plate only)
Fitment: 2007½-2018 Dodge RAM 6.7L Cummins
Heat in the 68RFE transmission causes the stock thin cast channel plate to warp, causing cross leaks and poor shift performance. To combat this common issue, ATS designed a BilletProof Channel Plate: A stress relieved 1" thick aluminum tooling plate precisely CNC machined to include all valve body channels, vent holes, and even includes pressure testing ports with engraved labels. Critical channels have been enlarged to allow additional fluid to feed the clutch packs ensuring a quick fill time. ATS's BilletProof Channel plate for the 68-RFE works with both stock transmission pan's, as well as aftermarket deep pans.
This BilletProof Channel Plate can be installed in any 68RFE transmission. A crisp, smooth, strong shift quality will be immediately noticed after installation of the BilletProof Channel Plate and all of the problems that are associated with cross leaks will be eliminated. We also recommend you install the ATS laser cut separator plate and gaskets when installing the BilletProof Channel Plate.
Features:
- 68RFE Valve Body Channel Plate 2007.5-2018 Dodge RAM 6.7L Cummins
- Material: Aluminum
- Liter: 6.7 Liter
- Transmission Model: 68RFE
- Engine Manufacturer: Cummins
- Fits: 2007.5-2018 Dodge Ram
